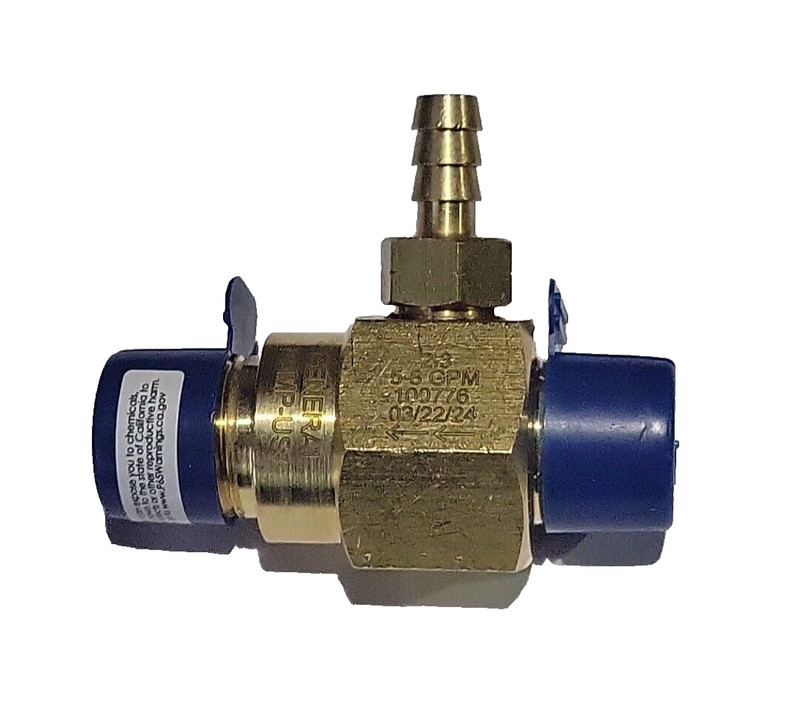

General Pump #100776 Pressure Washer Chemical Injector 3/8" NPT- 2.3mm 5-8 GPM
General Pump #100776 Injector Note: Install the injector with the arrow pointed in the direction of the flow SPECIFICATIONS Orifice2.3 mmGPM5.0 to 8.0Rated PSI4500Inlet3/8" NPT-MaleOutlet3/8" NPT-MaleTemperature190° F max.Hose Barb1/4" This product is to be used with clean, fresh water.For different or corrosive liquids, contact GP Technical Service Department.With not clean liquids, appropriate filtration should be installed.Select the injector based on the nominal operating rating: system rated pressure, max flow and max temperature.Install valve with direction arrow pointing downstream.For proper operation a control device such as a dual lance wand, quick couple nozzles, or an adjustable nozzle holder must be used to lower the system pressure at the nozzle.Under no circumstances should the pressure of the system exceed the maximum rated pressure of any component.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | General Pump |
| Model | NPT-Male |
| MPN | 100776 |
| Country/Region Of Manufacture | United States |
General Pump #100776 Injector Note: Install the injector with the arrow pointed in the direction of the flow SPECIFICATIONS Orifice2.3 mmGPM5.0 to 8.0Rated PSI4500Inlet3/8″ NPT-MaleOutlet3/8″ NPT-MaleTemperature190° F max.Hose Barb1/4″ This product is to be used with clean, fresh water.For different or corrosive liquids, contact GP Technical Service Department.With not clean liquids, appropriate filtration should be installed.Select the injector based on the nominal operating rating: system rated pressure, max flow and max temperature.Install valve with direction arrow pointing downstream.For proper operation a control device such as a dual lance wand, quick couple nozzles, or an adjustable nozzle holder must be used to lower the system pressure at the nozzle.Under no circumstances should the pressure of the system exceed the maximum rated pressure of any component.
