3600 PSI Pressure Power Washer Pump 4.7 GPM for 1" Hollow Shaft Water Pump+Guage

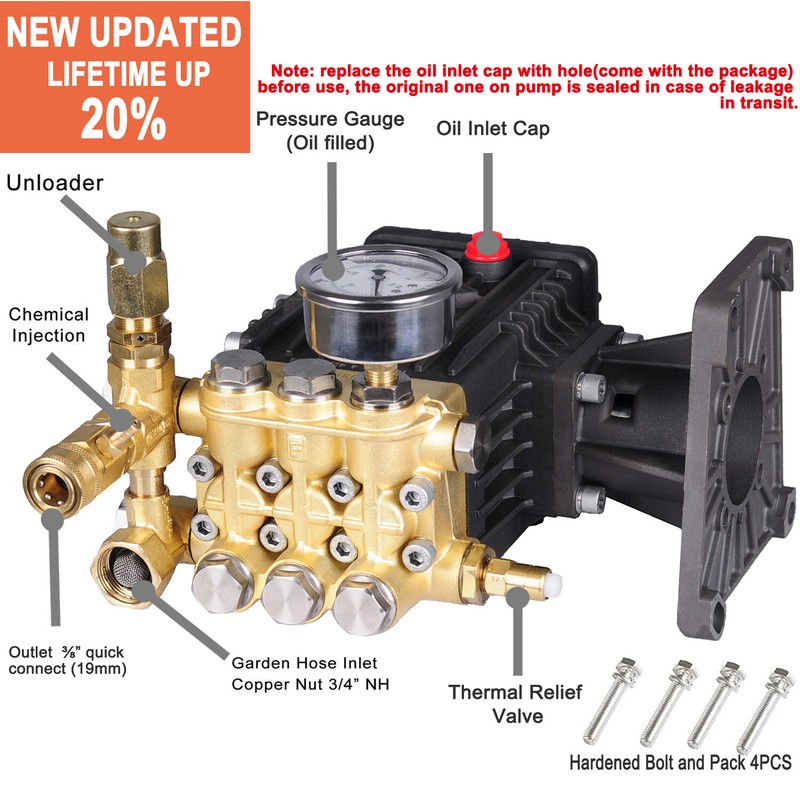

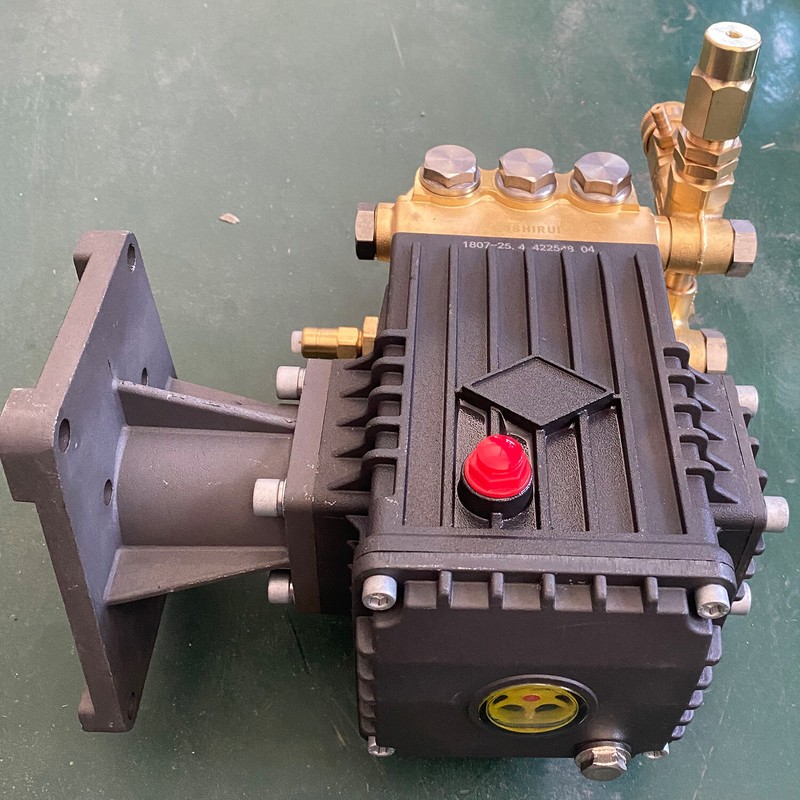

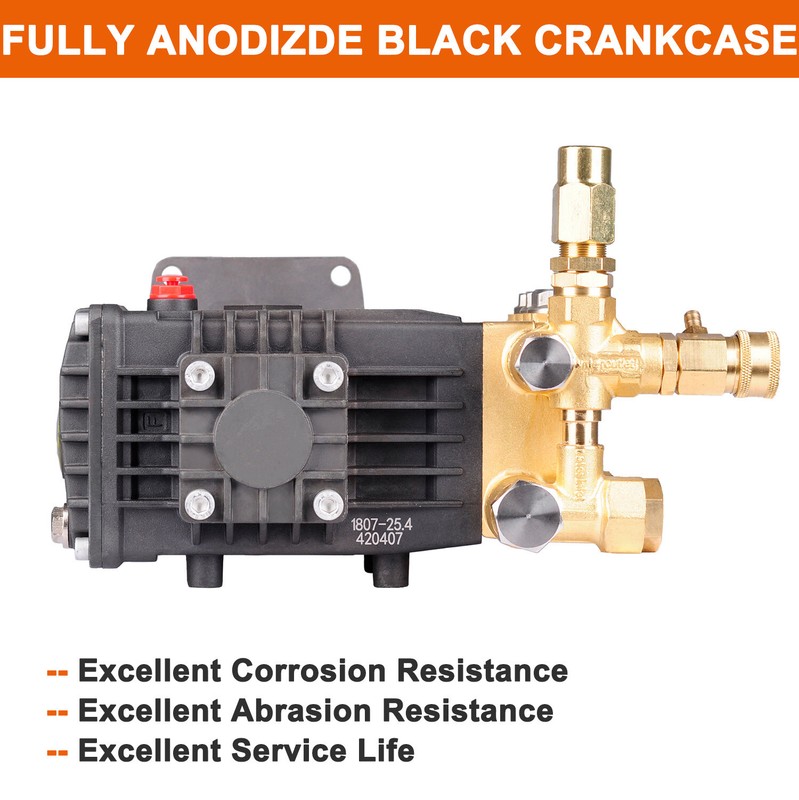

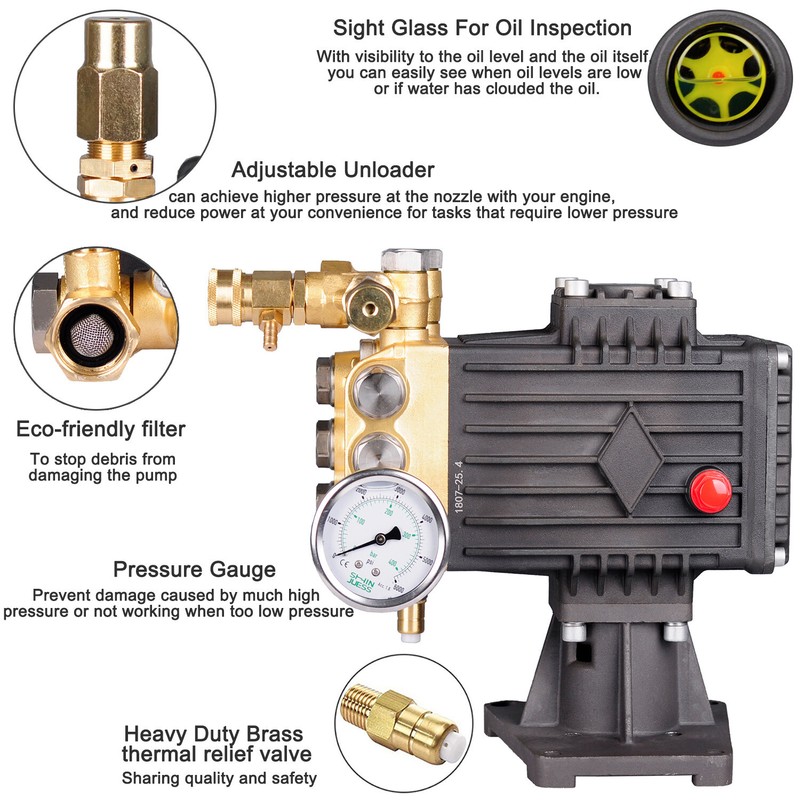

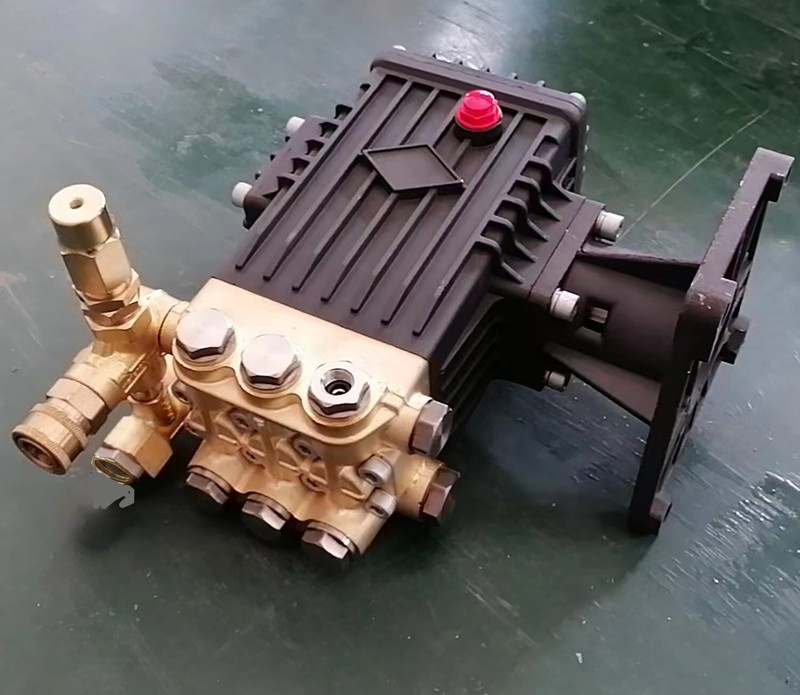

3600 PSI 4.7 GPM Horizontal Triplex Plunger Replacement Pressure Washer Pump Kit, 1" Shaft, Includes Hardware, pressure valve and Tube, for Industrial Gas Powered Machines Bullet Point **** 3,600 psi（marx 250 Bar) at 15-18LPM/3.96-4.8GPM, standard 10 HP(max 13 HP) at 3400-3600rpm, 1-inch(25.4 mm) hollow shaft, horizontal mount direct-drive; Diagonal distance between holes is 6 1/2'', Distance between short side holes is 3 1/4'', Distance between long side holes is 4 1/2''. 6.35 mm keyway, 3/4-inch standard garden hose inlet, 3/8-inch(19mm) quick-connect outlet, 50°C (122°F) max. inlet water temperature.**** Replacement pump kit with near-universal compatibility for standard 1-inch shaft direct-drive gas engines from Honda, Annovi Reverberi, RIDGID, Blackmax, Generac, Husky, Excell, Troy-Bilt, Sears, Briggs & Stratton, Campbell Hausfeld and more. **** Forged brass and anodized aluminum construction with cooling fins; Durable 18 mm ceramic-coated solid stainless steel plungers; German-made packing seals. **** Detachable and pressure-adjustable internal bypass unloader valve with detergent injector and built-in water filter; Triplex plunger pump mechanism; Thermal relief protection to prevent pump overheating; Sight glass for oil inspection **** Easy Installation: This replacement pump features a garden hose inlet and QC quick connect high pressure hose outlet. The SAE standard bolt pattern that fits most* gas-powered pressure washers. Each kit includes a detergent tube with filter, mounting bolts, shaft key, to get your machine back in action as quickly as possible. (*Check your pressure washer's inlet and outlet orientation, mounting dimension to ensure compatibility) Pictures DescriptionATTENTION: 1. This Pump is ONLY for Horizontal Engines with a 1" shaft! * Not Fit Vertical engines & Electric Pressure Washers. 2. Install the unloader & pressure valve onto the pump before use. 3. Replace the oil inlet cap with hole(in package) before first use, then avoid pump damage. The original one on pump is sealed in case of oil leakage in transit. 4. When installing, please ensure that the keyway is installed before running your pressure washer. Allow water to flow freely through the pump until all air is out of the lines before firing the pressure washer up! Specifications:Match gas engine power: 9-13 HP(Standard 10 HP) Work pressure: ≤3625PSI/250Bar Flow rate: 15-18LPM/3.96-4.8GPM Power: 7.5KW(Require at least 5.5KW gas engine) Engine speed: 3400 RPM Hollow shaft: 1"(25.4mm) Pump plunger bore: 18 mm Inlet: ¾” NH thread Outlet: ⅜” quick connect(19mm) Certificate: CE, ISO9001, CCC Package including 1 x replacement Pump, 1 x pressure guage, 4 x flange bolts, 2 x keyway, 1 x detergent tube Shipping and Payment Only PayPal accepted Your order will be shipped within 1-2 business days From Texas once we receive your payment. We do not ship on Sundays or public holidays Ship to PayPal confirmed address ONLY Return We stand behind our products. Items can be returned for exchange or full refund within 14 days from the date you receive your merchandise. For all cases, shipping and handling fee is not refundable and buyer is responsible for the return shipping cost. If it is a non-seller mistake case, a 20% restocking fee will be charged. Warranty and Feedback We guarantee you a five star shopping experience with us. If you are not satisfied with your purchase, please contact us. All faulty due to improper installation or improper use will NOT be covered by the warranty. Any physical damage will void your warranty too. Feedback will be left automatically when your item is shipped. We appreciate you leave 5 STAR of Detailed Seller Rating and POSITIVE Feedback for us upon receipt of your item. Warranty excludes normal product lifetime wear-out, wear and tear or abuse. Warranty does not apply to conditions resulting from misuse, abuse, negligence, accident, improper application, improper installation or alteration. If you encounter any problems about anything, please email us to allow us an opportunity to correct any problem and we will do our best to assist you solve the issue.
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | branded |
| Power Source | Gasoline |
| Horsepower | Max 13 HP |
| Color | Black |
| Features | Quick Connect |
| Country/Region Of Manufacture | China |
| Maximum Pressure | 3600 psi |
| Power | 7500 W |
| Item Weight | 20 lbs |
3600 PSI 4.7 GPM Horizontal Triplex Plunger Replacement Pressure Washer Pump Kit, 1″ Shaft, Includes Hardware, pressure valve and Tube, for Industrial Gas Powered Machines Bullet Point **** 3,600 psi（marx 250 Bar) at 15-18LPM/3.96-4.8GPM, standard 10 HP(max 13 HP) at 3400-3600rpm, 1-inch(25.4 mm) hollow shaft, horizontal mount direct-drive; Diagonal distance between holes is 6 1/2”, Distance between short side holes is 3 1/4”, Distance between long side holes is 4 1/2”. 6.35 mm keyway, 3/4-inch standard garden hose inlet, 3/8-inch(19mm) quick-connect outlet, 50°C (122°F) max. inlet water temperature.**** Replacement pump kit with near-universal compatibility for standard 1-inch shaft direct-drive gas engines from Honda, Annovi Reverberi, RIDGID, Blackmax, Generac, Husky, Excell, Troy-Bilt, Sears, Briggs & Stratton, Campbell Hausfeld and more. **** Forged brass and anodized aluminum construction with cooling fins; Durable 18 mm ceramic-coated solid stainless steel plungers; German-made packing seals. **** Detachable and pressure-adjustable internal bypass unloader valve with detergent injector and built-in water filter; Triplex plunger pump mechanism; Thermal relief protection to prevent pump overheating; Sight glass for oil inspection **** Easy Installation: This replacement pump features a garden hose inlet and QC quick connect high pressure hose outlet. The SAE standard bolt pattern that fits most* gas-powered pressure washers. Each kit includes a detergent tube with filter, mounting bolts, shaft key, to get your machine back in action as quickly as possible. (*Check your pressure washer’s inlet and outlet orientation, mounting dimension to ensure compatibility) Pictures DescriptionATTENTION: 1. This Pump is ONLY for Horizontal Engines with a 1″ shaft! * Not Fit Vertical engines & Electric Pressure Washers. 2. Install the unloader & pressure valve onto the pump before use. 3. Replace the oil inlet cap with hole(in package) before first use, then avoid pump damage. The original one on pump is sealed in case of oil leakage in transit. 4. When installing, please ensure that the keyway is installed before running your pressure washer. Allow water to flow freely through the pump until all air is out of the lines before firing the pressure washer up! Specifications:Match gas engine power: 9-13 HP(Standard 10 HP) Work pressure: ≤3625PSI/250Bar Flow rate: 15-18LPM/3.96-4.8GPM Power: 7.5KW(Require at least 5.5KW gas engine) Engine speed: 3400 RPM Hollow shaft: 1″(25.4mm) Pump plunger bore: 18 mm Inlet: ¾” NH thread Outlet: ⅜” quick connect(19mm) Certificate: CE, ISO9001, CCC Package including 1 x replacement Pump, 1 x pressure guage, 4 x flange bolts, 2 x keyway, 1 x detergent tube Shipping and Payment Only PayPal accepted Your order will be shipped within 1-2 business days From Texas once we receive your payment. We do not ship on Sundays or public holidays Ship to PayPal confirmed address ONLY Return We stand behind our products. Items can be returned for exchange or full refund within 14 days from the date you receive your merchandise. For all cases, shipping and handling fee is not refundable and buyer is responsible for the return shipping cost. If it is a non-seller mistake case, a 20% restocking fee will be charged. Warranty and Feedback We guarantee you a five star shopping experience with us. If you are not satisfied with your purchase, please contact us. All faulty due to improper installation or improper use will NOT be covered by the warranty. Any physical damage will void your warranty too. Feedback will be left automatically when your item is shipped. We appreciate you leave 5 STAR of Detailed Seller Rating and POSITIVE Feedback for us upon receipt of your item. Warranty excludes normal product lifetime wear-out, wear and tear or abuse. Warranty does not apply to conditions resulting from misuse, abuse, negligence, accident, improper application, improper installation or alteration. If you encounter any problems about anything, please email us to allow us an opportunity to correct any problem and we will do our best to assist you solve the issue.
